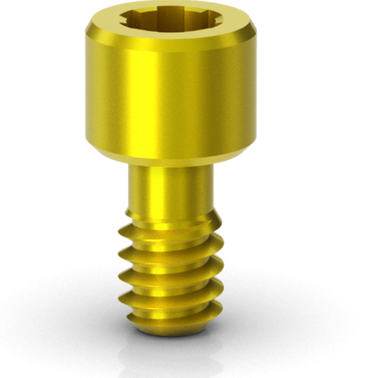

DirectFit Screw

The DirectFIT Screw Exocad library (version 9.0) is now available in the Connectivity Portal: Dental Implant & Prosthetic CADCAM Design Library

Two separate libraries available:

One for the centralized milling workflow

One for the local milling workflow.

Regarding the local milling library, you will find the DirectFITScrew within the Neodent_Abutment_Level_local-milling folder.

Please note that the library is divided into PMMA and Zirconia options due to the different prosthesis thickness requirements for each material.

2 options available in the software:

-PMMA (temporary prosthesis), the thickness is 1,0mm, and for

-Zirconia (final restoration), the thickness is 0,4mm.

Therefore, we recommend clearly communicating these distinctions (central vs. local milling and PMMA vs. Zirconia) to the network to avoid confusion and ensure correct case submission.
