Novaloc - Overdenture Housing System

System Description



-The Novaloc® matrix system with its newly developed technology is a ready-made connective element to fix removable dentures to Locator ® males or Novaloc® and Locator® abutments.

-The Novaloc® matrix consists of a housing (choice between titanium or PEEK) and six inter-changeable plastic retention inserts (PEEK) with differently color-coded retention values or pull-off weights.

-The snap fit connection of the Novaloc® matrix to the Novaloc® abutment or Locator® male is based on the locking mechanism of the retention insert across the functional range of the No-valoc® abutment or the Locator® male.

-The use of PEEK as a material, the Novaloc® matrix is also able to cater for several extremely divergent abutment positions without wear and tear to the retention inserts.

-The dilation area arranged between the matrix housing and the retention insert allows the re-tention insert to expand without any strain, thus significantly extending the life span.

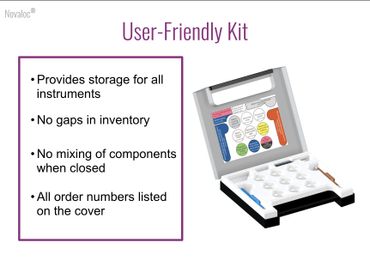

-Specifically developed Novaloc® tools for dentists and dental technicians includes all necessary system components and tools.

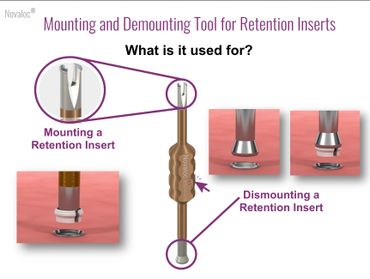

(Novaloc®-specific tool is the mounting and de-mounting tool for retention inserts which permits retention inserts to be replaced or ex-changed absolutely stress-free using specially developed technology)

Novaloc Quick Step Guide

Novaloc Flyer (pdf)

Download

Instructions for Use (pdf)

Download

Novaloc Presentation_How To (pdf)

Download

Study_2 yr function_Novaloc (pdf)

Download

GM_Novaloc_Ordering (pdf)

Download

CM_MedentiLOC Novaloc (pdf)

Download

Overdenture Abutments and Novaloc

    Overview of Novaloc and TIN abutments for Neodent

    Denture to Overdenture Conversion

    model based

    Quick Guide

    Novaloc Tooling

    Chairside Conversion Steps

    Clinician (chairside) and Lab Conversion

    Download PDF

    Novaloc: Overdenture Walkthrough

    Can be used on Locator Abutments also!

    We have straight and 15 degree angled locator type abutments that fit most implant systems.

    Conversion Process Chairside

    Novaloc Overdenture System

    Novaloc: overdenture housing system

    Novaloc is an overdenture housing system that fits the locator abutment from Zest.  Novaloc is an easy to use system with PEEK housing for for a longer lasting retention, cleaner hermetic seal, and easy tooling system to help expedite your overdenture cases.
